Portable XRF Analyzer

Accuracy: With powerful hardware and unique software algorithms, the ProSpector 2 offers the highest precision and accuracy of elemental analysis for a wide range of materials.
Speed: Dynamically Adaptive Shaping (DAS) DPP developed by Elvatech combined with the Fast SDD detector makes the ProSpector 2 the fastest handheld XRF analyzer on the market.
Stability: Thanks to the digiX-40 digital X-Ray source, automatic temperature and barometric corrections, and digital calibration adjustment, ProSpector 2 offers long-life reproducibility of the analysis without the need to re-calibrate the syste

Please Contact for Price

Satisfaction Guaranteed
Superior Quality
Custom Solutions
Comprehensive Support
Secure Payment Options

Description
Reviews (0)

Description

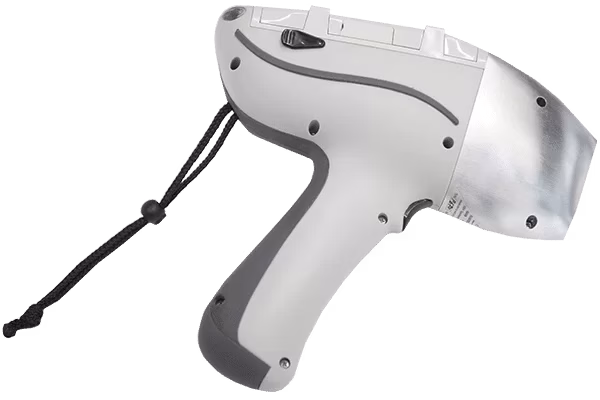

ProSpector 2 – Portable XRF Analyzer for Precise Elemental Analysis

ProSpector 2 is a time-tested handheld XRF analyzer. Due to the advanced electronics and state-of-the-art mathematical algorithms, ProSpector 2 provides ultimate quality of measurement within a couple of seconds. It is an intuitive and user-friendly instrument for highly accurate elemental analysis in a variety of applications.

High speed of operation @ above 500 000 CPS count rate
Ambient temperature and pressure corrections for highest stability
Over 10 hours operation from the battery
Detector protection
Extensive and editable alloy grade library
Protective film replacement with no tool required
Full compatibility with ElvaX^TM PC software
Radiation safety: IR proximity sensor and low count detection
Scanning barcodes (commodity EAN and UPC codes, QR codes, book ISBN codes, Databar, Codabar, etc.) that contain information about the sample: name, number, code, etc.
Great choice of accessories for comfortable work. (Portable XRF Analyzer)

ProSpector 2 is a powerful handheld XRF analyzer. Due to the advanced hardware and unique software algorithms, ProSpector 2 provides ultimate speed and accuracy of the elemental analysis. ProSpector 2 combines powerful analytical software toolkit with an easy-to-use interface, allowing even novice operators to perform any necessary measurements in seconds.

Small Objects Analysis

Use a laboratory stand to prevent X-Ray scattering when analyzing small objects or light matrix samples.

Instant Analysis Results Print-out

A portable Bluetooth printer provides measurement prints at any time, anywhere.

Weld Joints Analysis

An adaptor for weld joints analysis focuses X-Ray spot on a weld joint excluding surrounding material

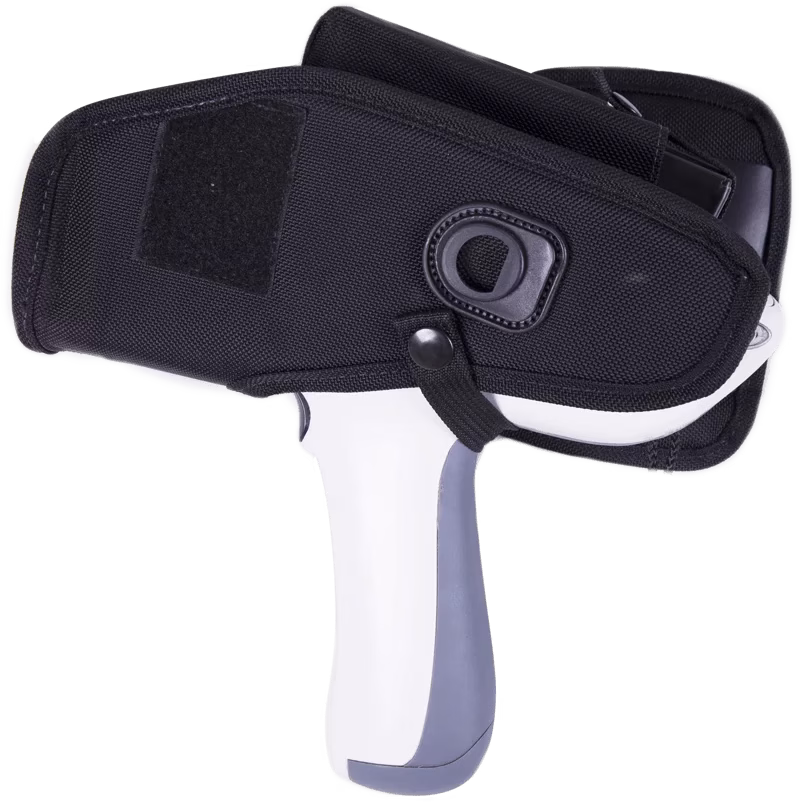

Convenient Carrying Case and Holster

Shock and water resistant carrying case allows you to take the instrument anywhere you need it. A holster with belt straps is used to keep the instrument handy all the time.

Digital X-Ray Source digiX-40
Anode: Rh, W
Voltage: 40 kV
Current: 200 uАmp
Power: 4 W
5 positions filter changer

X-Ray Detector
Type: SDD (optional PIN)
Area: 30 mm²
Energy resolution: <140 eV @ 5.9 keV
Count rate: 500,000 cps

Electronics
DPP: proprietary DAS (Dynamically Adaptive Shaping) type, 80 MHz sampling rate
MCA: 4096 channels
Display: 4.3″
Connectivity: USB, Bluetooth
High resolution video camera (option)

General
Dimensions: 242 х 230 х 78 mm
Weight: 1.4 kg

Software
Operating system: Windows EC7
Analysis algorithms: Fundamental parameters (FPA), Empirical (regression) calibrations
